Baileigh BB-2416E Box and Pan Folder 610mm

Baileigh BB-2416E Box and Pan Folder 610mm

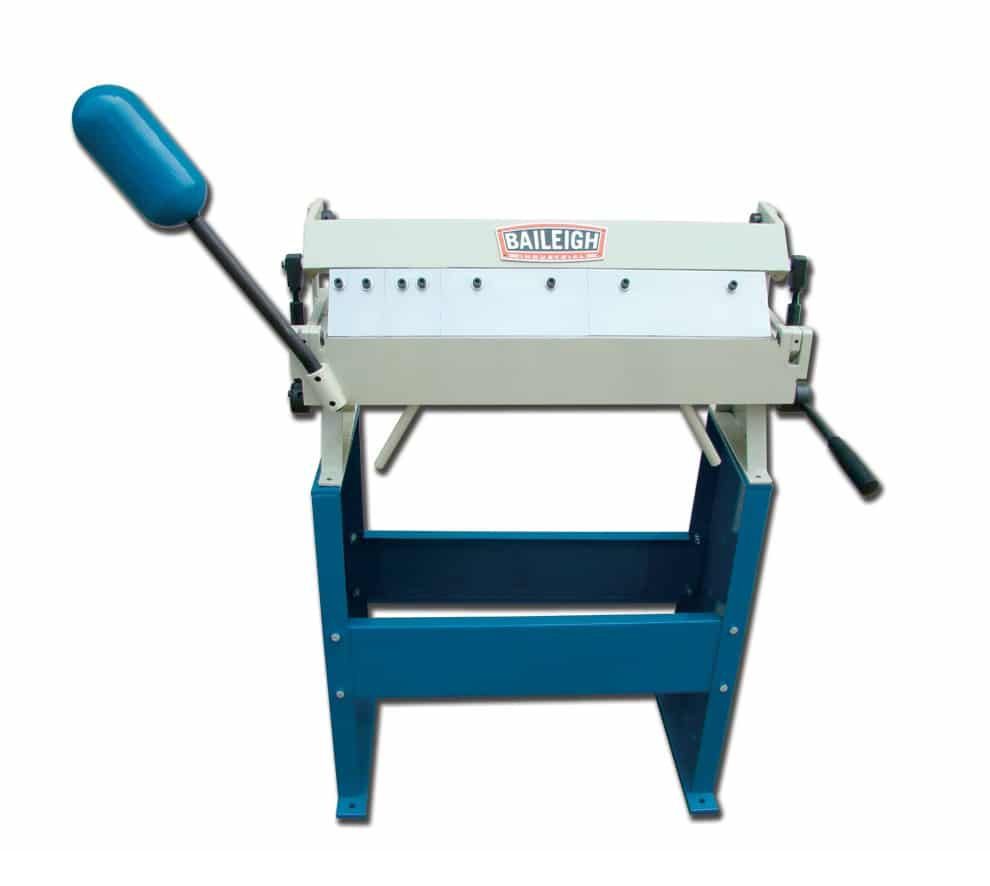

Although small in size, Baileigh Industrial's BB-2416E entry level box and pan brake is packed with useful features to make metal fabrication easier.

• The BB-2416E finger brake has a 610mm upper beam and apron, and has a maximum bend capacity of 1.6mm mild steel and 1mm stainless.
• This small sheet metal brake is perfect for hobbyists, educational institutions, or for any fabrication shops with small runs of smaller pieces.
• The BB-2416E comes with a sturdy floor stand, counterweight apron lift assist, and eight hardened fingers of varying lengths.
• It has the ability to bend up to a maximum of 135°.
• Like all Baileigh Industrial products, the BB-2416E finger brake is built to the highest quality standards.
• The BB-2416E box and pan brake is ruggedly constructed from steel plate that has fully welded framework for further support.
• Bending Finger Sizes are as follows: 1 - 254mm, 1 - 203mm, 1 - 76mm, 1 - 51mm, 1 - 25mm.
• Maximum box depth is 30mm.
• 1.6mm mild capacity
• 1mm stainless capacity
• 610mm folder length
• 0° – 135° bend angle

• Item Number BB-2416E
• Thickness (SS) 1,5 mm / 0,9 mm
• Stand Yes
• Box Depth 30mm
• Bend Angle 0 -135°
• Shipping Weight 85 kgs.
• Length 610 mm
• Shipping Dimensions (Inches) 864 x 356 x 457 mm
