Baileigh AP-3R Arbor Press

Baileigh AP-3R Arbor Press

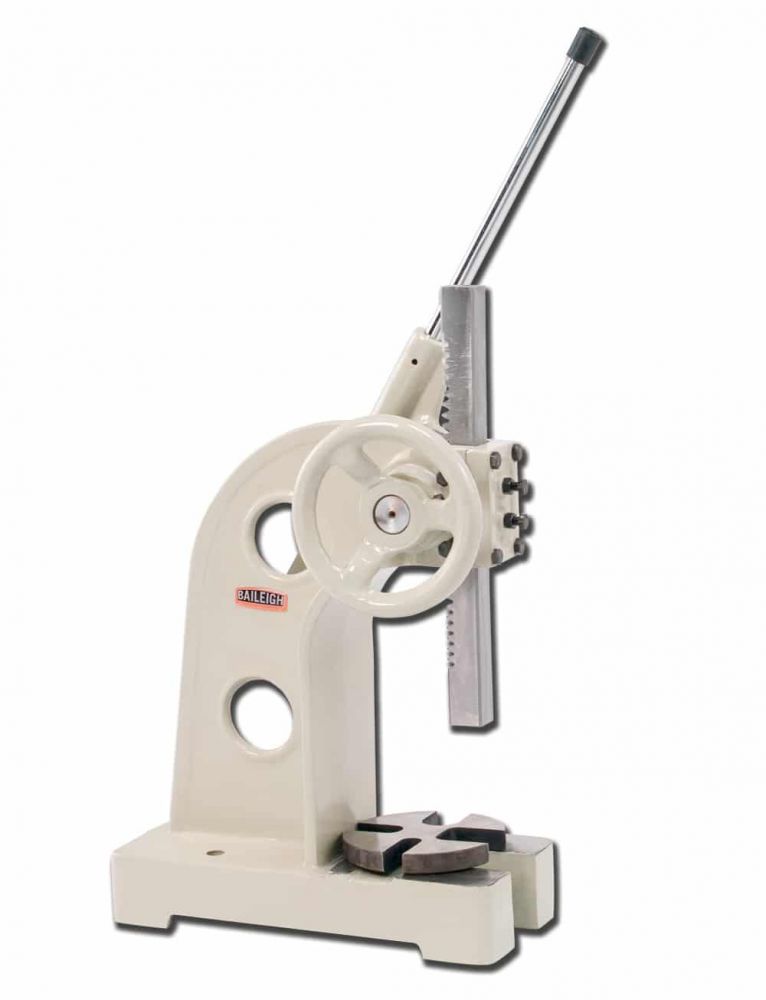

The AP-3R is a 3 ton arbor press with a heavy-duty cast iron frame.

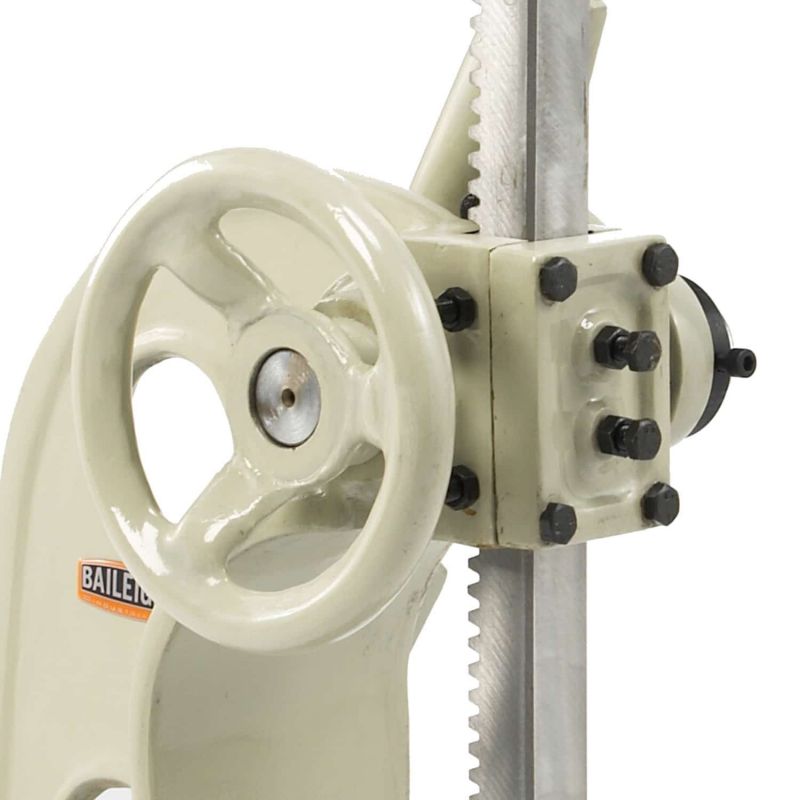

• This sheet metal forming arbor press machine is a ratchet leverage machine that allows the operator to get the most leverage out of each pull of the handle using a ratchet actuator.

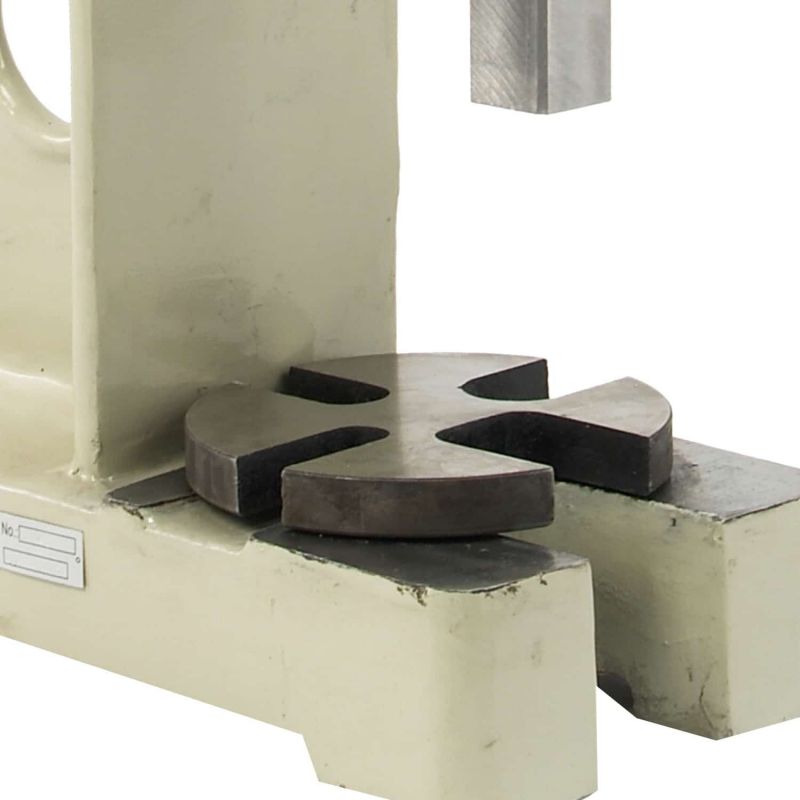

• There is a machined 4 position bottom plate that is perfectly perpendicular to the ram that has the proper opening for most broaches to push through.
• This arbor press has a solid, case hardened ram for perfect presses every time and offers years of profitable use at full capacity.
• All Baileigh arbor presses can be bench or pedestal mounted.
• The AP-3R arbor press has a 5 inch throat opening and can handle material up to 11 inches tall.
• Manually operated
• 2.7 metric tons of pressure

• Item Number AP-3R
• Ram Size 38 mm
• Throat Depth 127 mm
• Maximum Material Height 279 mm
• Capacity 2.7 ton
• Power Manual
• Shipping Weight 60 kgs.
• Ram Travel Per Revolution 152.4mm
• Shipping Dimensions (Inches) 457 x 229 x 635 mm
